Types of spares
Brand Spares
Bosch e-bike spares
Yamaha e-bike spares
Shimano e-bike spares
Battery
Fazua 430Wh
Display
Fazua Ring Control
Motor
Fazua Ride 60
Range
25-100 miles
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

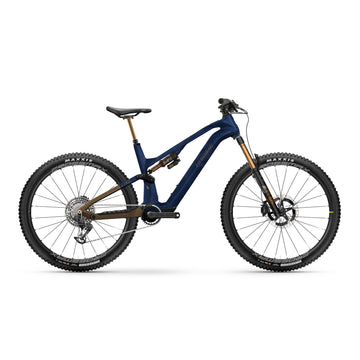

Brand new for the 2024 model year, the Haibike Lyke CF SE is the top model in the Lyke CF range.
Newly developed and designed specifically for super fast trail riding, the 3 new Haibike Lyke models are aimed at bridging the gap between non-electric mountain bikes and the vast majority of electric bikes on offer which are largely all 22kg or in many cases, much more.
In the last couple of years manufacturers seen a shift in the market for electric mountain bikes and no longer are people looking purely at the biggest possible motor and battery.
Whether you already own a "full fat" electric bike and you want something that feels closer to your old ordinary bike or if this is your first and you want all of the fun, handling characteristics and balance of a normal bike without having to slog it out to the top of the trail, the Lyke CF models are for you.
Our 5 point review...
1
Ultra-lightweight carbon frame
2
Hours of trail blazing fun from the built in 430Wh battery
3
Top of the range 12 Speed SRAM XX Eagle AXS Gearing
4
Brand new Fazua Ride 60 250W 60Nm motor
5
Optional 210Wh bolt on range extender
Features
Brand new and more powerful than ever, the Fazua Ride 60 motor and drive system is designed to offer an individually tunable, aesthetically pleasing integration whilst allowing full rider control.
Weighing in at just 4.2Kg for the entire system, this strong but ultra lightweight systems provides strong but lightweight assistance from a package which is compact and unintrusive. The heard o the system, the Fazua Ride 60 drive system peaks at 450W while staying super silent.
The built in 430Wh battery has enough capacity for hours of trail riding fun, is removable for charging and can be boosted with another 210Wh from the optional range extender.
The 2024 Haibike Lyke CF SE being the top specification model in the range is naturally equipped with the very best components on offer in this model year.
This brand new trail orientated eBike comes with the latest Kashima coated Fox Float X Factory rear shock for the very best in tuning capability - perfect turns without cutting any corners.
At the front of the bike, the Lky CF SE comes with the Fox Float 36 Factory 140mm forks. Working in harmony with the rear shock, they offer a lightweight and ultra robust chassis with air spring and matching Kashima Coat.
This 'eMTB Approved' fork ensures ultimate stiffness and control where eMTB demands are tougher.
Brakes & Gears
What goes up, must come down and what comes down, needs to be able to come to a stop!
Haibike have equipped the Lyke CF SE with anchors from the very top shelves at Shimano in the form of the XTR BR-M9120. Reserved for only the very most extravagantly specified bikes, these 4 piston hydraulic brakes are designed for fast, flowing and technical cross country and trail riding where the highest levels of performance for the lowest possible weight cost is required.
Levers are an all magnesium construction to further shave weight from the braking system, but retain exceptional performance in modulation with instantaneous rebound between actions.
The 12-speed SRAM XX AXS gearing system is a high-performance, wireless electronic groupset designed for mountain biking. It features a wide gear range, smooth and precise shifting, and advanced technologies like X-SYNC 2 chainrings for improved chain retention.
The AXS component integration offers customizable settings via the AXS app. This system enhances the riding experience by providing reliable, low-maintenance performance and the ability to shift under load, making it ideal for challenging terrains.
Shimano XTR brakes deliver exceptional stopping power, superior modulation, and lightweight design. Engineered for high performance, they provide consistent braking in all conditions, ideal for demanding mountain biking.
The SRAM XX AXS rear derailleur offers precise, wireless electronic shifting, robust durability, and advanced chain management. It’s designed for seamless performance on tough mountain biking terrains.
SRAM AXS wireless shifters offer precise, customizable shifting with minimal effort. Their intuitive design ensures seamless gear changes, while the wireless technology provides a clean, cable-free cockpit for mountain biking.
Wheels & Tyres
Mavic E-Crossmax XL R Carbon wheels are a pinnacle of electric mountain biking innovation. These carbon wheelsets are meticulously engineered for the demands of e-MTB riding. Their lightweight yet robust design ensures durability and agility.
These wheels provide impressive traction and control on a variety of terrains, offering optimal performance for trail and enduro adventures. With their carbon construction, these wheels deliver a combination of strength and speed, making them a top choice for riders who demand the best for their e-MTB experience. Elevate your off-road riding with Mavic E-Crossmax XL R Carbon wheels.
Maxxis Dissector MaxSpeed EXO+ tires are a dream come true for aggressive mountain bikers. These tires are engineered for speed and control, thanks to the MaxSpeed compound that ensures efficient rolling.
The EXO+ casing provides reliable puncture protection and durability on rugged terrains. The Dissector's tread pattern offers superior grip, enabling riders to confidently tackle challenging trails and berms. If you crave precision and speed while maintaining control, Maxxis Dissector MaxSpeed EXO+ tires are the perfect choice for your off-road adventures.
The bottom line..
Weighing in at as little as 18kg, the 2024 Haibike Lyke CF SE was designed to provide intuitive assistance and peak torque inside the range of normal, high-quality trail riding componentry.
Fast direction changes and precise, playful handling aren't something normally associated with eBikes but with the ultra sporty nature of the Haibike Lyke model range, it'll feel just like riding your conventional trail bike, with a healthy push for the hills!
Absolutely everything was considered when designing this brand new electric mountain bike.
The frame materials and manufacturing process, the components and even the brand new motor and drive system were all individually selected for their unique power to weight ratio and performance characteristics.
Power
The new 2024 Haibike Lyke CF SE features the latest Fazua Ride 60 motor and drive system.
Their newest and most powerful integrated motor and drive system, the new 1.96kg Ride 60 motor provides a healthy 60Nm of torque and peaks at 450W. Light, silent, powerful and compact it encompasses Fazua's usual smooth pedal stroke and its small size allows seamless integration and a smaller, higher bottom bracket area.
The internally mounted 430Wh battery is packaged in a user friendly housing. Sliding onto a specially designed and lightweight rail inside the frame, its easily removable for storage and charging and can be boosted by an optional 210Wh range extender with charging support up to 3A.
The whole system is controlled using the new Fazua Ring Control. Switching between power modes, turning lights on and off or activating the walk assist function can be done at the touch of a button and without taking your eyes off the trail. Feedback is provided via the Fazua LED hub, displaying battery charge state and selected power mode. It also has a "USB-C out" charge option for smartphones and GPS devices, along with full Bluetooth and ANT+ connectivity.
This clever little gadget sits centrally on the top tube and displays information on battery status, riding mode and can even charge your smart phone!
Lightweight, powerful & beautifully integrated, the Fazua Ride 60 motor is neatly hidden inside the frame & ready to offer up to 450w peak assistance.
The Fazua Ring control is brand new and complements the new drive system perfectly. Minimalist, intuitive and incredibly simple to operate.
What's included
Your new Haibike electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your Haibike eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
Haibike electric bikes include a 5yr (Alloy) or 2yr (Carbon) warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a Haibike UK eBike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Why choose E-Bikeshop?
14 Days Free Insurance
Available exclusively on all E-Bikes, opt for yours in the cart
UK's largest selection
Over 700 E-Bikes in stock ready for next business day delivery
Best support & advice
Renowned support from in house qualified E-Bike technicians
Instant parts & spares
Exclusive access to E-Bike spares in stock & delivered quickly
We're here for you
We're the specialists ready to help with your E-Bike journey
Specifications
General Bike Specifications
Frame Carbon, through axle M12 (1.00) x 148mm, disc brake Post Mount
Forks FOX 36 Float Factory, air, thru-axle Boost, Travel: 140mm
Rear Shock FOX Float X Factory, air, Travel: 140mm
Brakes Shimano XTR M9120, 203mm/180mm
Shifters SRAM AXS Pod Controller
Rear Mech SRAM XX Eagle AXS Transmission, 12-speed
Cassette SRAM XX Eagle 10-52 teeth / CS XS-1297
Chain SRAM X0 Eagle Flattop
Wheelset Mavic E-Crossmax XL R Carbon
Tyres Maxxis Dissector MaxxTerra EXO, 62-622 (Front) / Maxxis Dissector MaxxTerra EXO+, 62-622 (Rear)
Handlebars Raceface Next Carbon 760mm
Stem Raceface Turbine SL, A-head, Bar bore: 35mm
Headset Acros BlockLock
Seatpost FOX Transfer FACTORY, telescope, 31.6mm
Saddle fi'zi:k Terra Aidon X1-145 Carbon
Weight 17 kg
Electric Bike Specifications
Battery Fazua Energy InTube 430Wh
Display Fazua Straight bar Ring control
Motor Fazua Ride60, 250W, 60Nm, 25km/h
Range 25-100 miles of power assisted range, depending on terrain
