Specifications
General Bike Specifications
Frame Cube Aluminium Superlite Frame

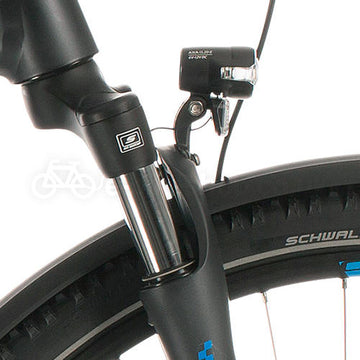

Forks SR Suntour NEX-E25 HLO, 63mm
Brakes Shimano BR-MT200 hydraulic disc brakes, 180mm / 160mm Rotors
Shifters Shimano SL-M4000, Rapidfire-Plus, 9-Speed
Rear Mech Shimano Deore RD-M4000-SGS, 9-Speed
Cassette Shimano CS-HG201, 11-36T
Chain KMC X9
Wheelset Cube EX23 Rims laced on Shimano Centerlock hubs
Tyres Schwalbe Smart Sam, Active, K-Guard, 28 x 1.65"

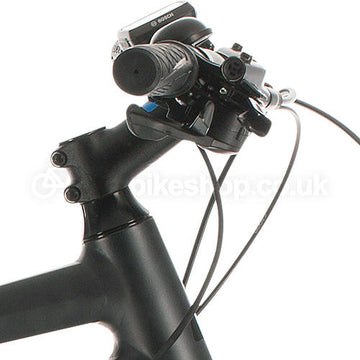

Handlebars CUBE Rise Trail Bar, 700mm
Stem Cube Performance Stem Pro, 31.8mm
Headset FSA Orbit 1.5B ZS-R
Seatpost CUBE Seatpost, 27.2mm
Saddle Natural Fit Sequence Comfort
Weight 22.2 kg
Electric Bike Specifications

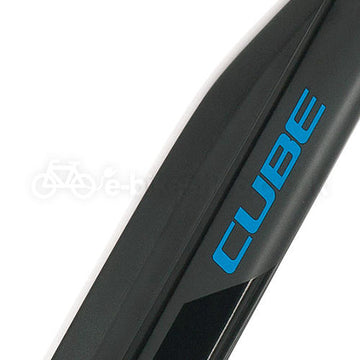

Battery Bosch Lithium Ionen 36 Volt, 500 Wh, with BMS Management
Display Bosch Purion Multi Functional Display
Motor Bosch Active Line Plus 36 Volt, 250 Watt. 40 - 270% Assist, 50Nm
Range 30-140 miles of power assisted range, depending on terrain
E&OE
