E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

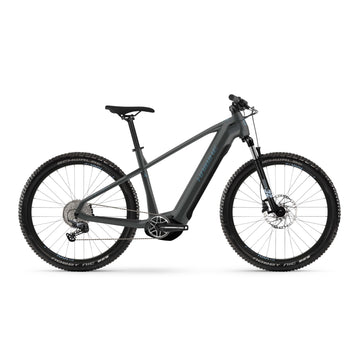

The 2024 Haibike AllTrail 5 29 is the key to unlocking your full potential on the trails.
This e-bike is engineered for riders who crave adventure and superior performance. With a rugged yet lightweight frame, it's designed to handle the most demanding terrains while ensuring agile maneuverability. The 29-inch wheels offer the perfect balance of stability and nimbleness, empowering you to conquer any trail with confidence.
Its powerful electric motor propels you up steep inclines, extending your riding range. The long-lasting battery ensures hours of exploration without compromise. Elevate your off-road experiences with the 2024 Haibike AllTrail 5 29 - your gateway to unparalleled outdoor adventures.
Our 5 point review...
1
Lightweight alloy hybrid frame
2
Super long range 720Wh Yamaha battery
3
11 speed Sram NX 11-42t gearing
4
Yamaha's newest PW-S2 motor with 75Nm of torque
5
Large, easy to read Yamaha Side Switch display
Features
Haibike have built arguably some of the best hard tail electric mountain bikes from the last decade and the latest line of 2024 AllTrack models will be no exception.
Using the the new Yamaha PW-S2 motor and a 720Wh battery pumping out 75Nm of torque, the AllTrack 5 29 will be another great value addition to their new year line up for those who need to go further.
The first company to build a fully integrated ebike system, riders expect that Haibike wont fall behind on the integration of frame components and the AllTrack 5 is no different.
For 2024 it retains its ultra sleek frame lines with fully internal routing for all cables including the routing and frame ports for an optional stealth dropper post.
The Yamaha 720Wh battery has been mounted inside the frame to further protect it while enhancing the frame aesthetics.
Brakes & Gears
Haibike have supplied the AllTrack 5 229 with Shimano's MT200 hydraulic disc brakes.
Now very much standard fitment on the Haibike hard tail model range, they offer great performance with super easy maintenance. Paired with 180mm discs front and rear they offer plenty of bite and modulation.
The 2024 Haibike AllTrack 5 29 eBike is equipped with a full Sram 11-speed group set.
The Sram setup with their 11-42t rear cassette offers a great range of gears for almost all terrain tyres, especially hills.
Designed to allow riders to not only ascend more hills than they thought possible, it doesn't limit top end speed on flat ground. The Rapidfire-Plus shifters are responsive, positive and crisp - allowing you to simply focus on the ride.
Shimano BR MT-200 hydraulic brakes offer strong breaking force with minimal grip strength
11 Speed Sram NX gearing provides a wide ratio choice for every type of terrain.
Sram NX shifters make light work of flicking through the 11 speed rear cassette
Wheels & Tyres
Haibike's proprietary AL wheels are a testament to precision and performance. These wheels, crafted in-house by Haibike, are designed for excellence in the world of e-biking. Their aluminum construction strikes an ideal balance between strength and weight, offering agility and durability.
With Haibike's signature quality, these wheels provide reliable performance and are tailored to complement their electric bikes seamlessly. Haibike's AL wheels enhance your ride with quality and precision, making them a preferred choice for riders who demand the best from their e-biking experience.
Schwalbe's Nobby Nic tyres are a mountain biker's dream come true. These tires are celebrated for their all-around excellence. With an advanced tread pattern, they deliver superb grip and control on diverse terrains, from muddy trails to rocky paths.
Nobby Nic tyres are known for their durability and puncture resistance, ensuring uninterrupted adventures. Whether you're a seasoned rider or a novice, these tyres provide confidence and reliability, making them a top choice for off-road cycling excursions.
The bottom line..
Every year, Haibike turn out an ever increasing and highly impressive range of aggressively styled hard tail mountain bikes and the 2024 AllTrack 5 29 is no exception. Its also the first to take advantage of some of the core features of the new Yamaha drive systems.
Priced at only Ā£2,799, we expect this bike will appeal to a wide range of riders. From those just starting out in mountain biking, seasoned riders looking to flatten out the hills and those who are just looking for an "all-in-one" solution for multiple types of riding.
Haibike's hard tail range popularity is largely due to its high level of specification for its price point and is always popular for any rider of any skill level looking for an every day XC trail bike. With incredibly keen pricing and a very well thought out spec list, its the perfect tool for your local trails.
Power
The new Haibike AllTrack 5 29 2024 eBike features the latest Yamaha PW-S2 drive system. This brand new motor for 2024 offers 75Nm of torque and peaks at over 500w. With 2 assistance modes, it can now provide up to 340% assistance in its highest power mode.
Part of the brand new PW-S2 system for 2024, the AllTrack 5 29 also gets a 720Wh battery. Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.
The new Yamaha Side Switch display is compact and mounted on the left handlebar. Intuitive and easy to use, the LCD display screen is easy to read and navigate on the fly.
The Yamaha Side Switch is the most commonly used Yamaha display system and has all the features a rider needs in one neat package.
The Yamaha motor system gets a new update for 2024 in the form of the PW-S2. With 75Nm, it has all the power you need to cover any terrain type.
The AllTrack 5 29 2024 gets the new Yamaha 720Wh battery, offering up to 160 miles on a single charge.
What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Why choose E-Bikeshop?
14 Days Free Insurance
Available exclusively on all E-Bikes, opt for yours in the cart
UK's largest selection
Over 700 E-Bikes in stock ready for next business day delivery
Best support & advice
Renowned support from in house qualified E-Bike technicians
Instant parts & spares
Exclusive access to E-Bike spares in stock & delivered quickly
We're here for you
We're the specialists ready to help with your E-Bike journey
Specifications
General Bike Specifications
Frame Aluminium, through axle M12 (1.00) x 148mm, disc brake Post Mount
Forks SR XCM34 NLO DS, thru-axle Boost, Travel: 120mm
Brakes Shimano MT410, aluminium, 180mm
Shifters Sram NX, trigger switch
Rear Mech Sram NX, 11-speed
Cassette Sram PG1130, 11-42 teeth
Chain Sram NX
Wheelset Rodi Tryp 30, eyed, double-walled rim, aluminium
Tyres Schwalbe Nobby Nic Perf, 65-622
Handlebars XLC 720mm
Stem XLC A-head, A-head, Bar bore: 31.8mm
Headset Acros BlockLock
Seatpost Patent, 34.9mm, aluminium
Saddle Selle Royal Vivo Unitech
Weight 24 kg
Electric Bike Specifications
Battery Yamaha InTube 720Wh
Display Yamaha Side Switch
Motor Yamaha PW-S2, 250W, 75Nm, 25km/h
Range 30 - 160 miles of power assisted range, depending on terrain
